Are All Door Knobs the Same Size?
If you're replacing an old door knob or shopping for new hardware, you may wonder:
Are all door knobs the same size?
The short answer is:
Not exactly—but most modern residential door knobs are designed around a few common standards.
While the appearance and style of door knobs vary greatly, the installation dimensions used in most U.S. homes are surprisingly consistent.
Understanding these measurements can help you avoid compatibility issues and choose hardware that fits correctly the first time.
The Good News: Most Modern Door Knobs Follow Standard Sizes
Today, most residential door knobs are manufactured to fit:
✔ Standard bore holes
✔ Standard door thicknesses
✔ Standard backsets
This means many modern door knobs can be installed without modifying the door.
However, there are still important measurements you should verify before purchasing.

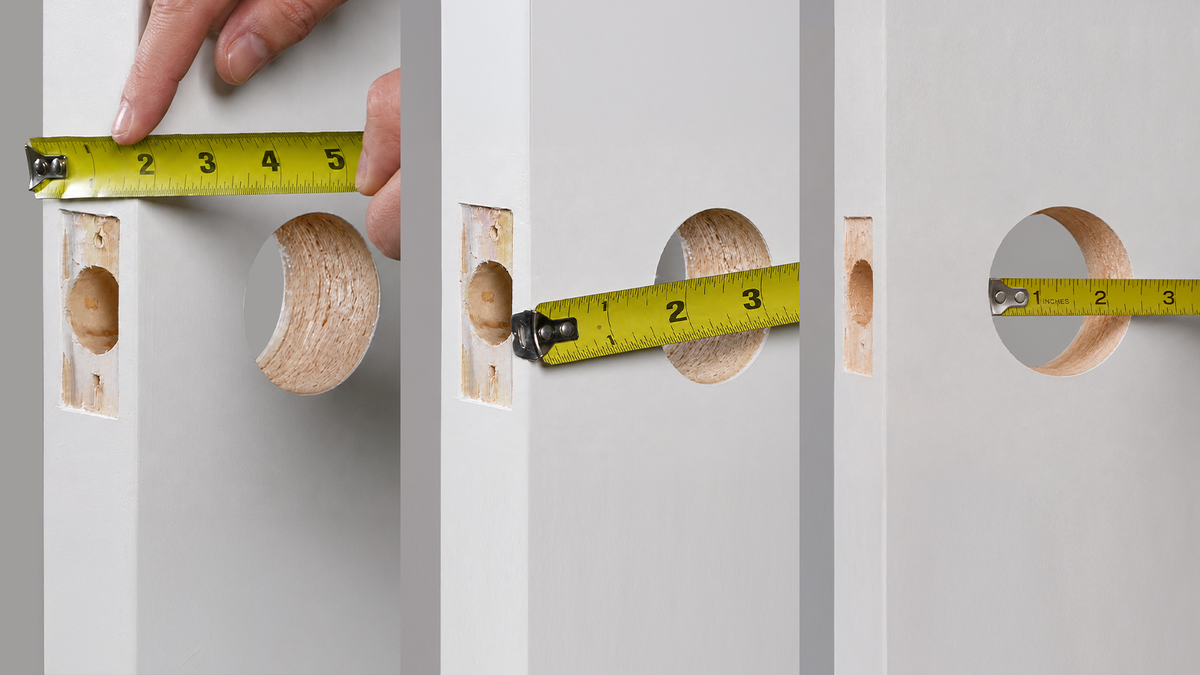

Standard Door Knob Bore Hole Size
The bore hole is the large circular hole drilled through the face of the door.
Standard U.S. Bore Hole
✔ 2-1/8" diameter
This is the most common size used for:
- Interior door knobs
- Entry door knobs
- Door levers
- Deadbolts
Standard Door Thickness
Even if the bore hole is correct, the door itself must also be compatible.
Common Residential Door Thicknesses
| Door Type | Thickness |
|---|---|
| Interior Door | 1-3/8" |
| Exterior Door | 1-3/4" |
| Custom Entry Door | 2-1/4" |
Most modern door knobs fit:
✔ 1-3/8" to 1-3/4" doors
Standard Backset Measurements
Another critical dimension is the backset.
The backset is the distance from the edge of the door to the center of the bore hole.
Most Common Backsets
✔ 2-3/8"
✔ 2-3/4"
Fortunately, many modern latches are adjustable and support both measurements.
Are Entry Door Knobs and Interior Door Knobs the Same Size?
In many cases, yes.
Most modern entry and interior door knobs share the same installation dimensions.
The primary difference is the function.
Interior Door Knobs
- Privacy
- Passage
- Dummy
Entry Door Knobs
- Keyed Entry
- Exterior Security
What About Older Doors?
This is where compatibility issues are most common.
Older homes may include:
✔ Mortise locks
✔ Non-standard openings
✔ Enlarged holes
✔ Previous hardware modifications
In these situations, a standard door knob may not install directly.
Can Adjustable Latches Solve Compatibility Problems?
Many modern door knobs include adjustable latches.
These latches typically support:
✔ 2-3/8" backset
✔ 2-3/4" backset
This flexibility allows one lockset to fit most residential doors.
For homeowners replacing existing hardware, adjustable latches often simplify installation.
When Might a Door Knob Not Fit?
A door knob may not fit if:
✘ The door uses a mortise lock
✘ The bore hole is non-standard
✘ The door is unusually thick
✘ Previous modifications damaged the opening
✘ The latch preparation is incompatible
For these situations, reinforcement plates, mortise conversion solutions, or specialty hardware may be necessary.
Frequently Asked Questions
Are door knobs universal?
Not completely, but most modern residential door knobs are designed around common U.S. standards.
What is the standard size hole for a door knob?
The standard bore hole is 2-1/8 inches.
Do all door knobs fit the same backset?
No. However, many modern door knobs include adjustable latches that fit both 2-3/8 inch and 2-3/4 inch backsets.
Are old door knobs the same size as modern door knobs?
Not always. Older doors often use mortise locks or non-standard preparations that may require adaptation.
Final Thoughts
While not every door knob is exactly the same size, most modern residential hardware follows a common set of standards.
If your door has:
✔ 2-1/8" bore hole
✔ 1-3/8" to 1-3/4" thickness
✔ 2-3/8" or 2-3/4" backset
most modern door knobs should fit without major modifications.
Taking a few quick measurements before purchasing can help ensure a smoother installation and avoid compatibility surprises.
