Before buying a new door knob, lever, latch, or deadbolt, there is one measurement you should always check:
Door backset.
Backset may sound like a technical hardware term, but it is actually simple to understand and very important for proper installation.
Choosing the wrong backset can cause your latch, knob, or lock to sit incorrectly, making the door difficult—or even impossible—to operate.
In this guide, we'll explain what door backset means, how to measure it, and the difference between the two most common residential sizes: 2-3/8" and 2-3/4".
What Is a Door Backset?
A door backset is the distance from the edge of the door to the center of the bore hole.
The bore hole is the large round hole where the door knob, lever, or deadbolt is installed.
In simple terms:
Backset = Door edge to the center of the knob hole
Most residential doors in the United States use one of two standard backsets:
✔ 2-3/8"
✔ 2-3/4"
Why Door Backset Matters
Backset determines where the latch sits inside the door.
If the backset is incorrect, the hardware may not line up with the existing door preparation.
Common problems include:
✔ Knob does not align with the latch
✔ Latch does not reach the strike plate correctly
✔ Lockset cannot be assembled properly
✔ Door does not close smoothly
✔ Hardware looks off-center
This is why checking the backset before ordering hardware is so important.
2-3/8" vs 2-3/4" Backset: What's the Difference?
The difference between 2-3/8" and 2-3/4" is only 3/8", but it matters.
2-3/8" Backset
Commonly used on:
✔ Interior doors
✔ Bedroom doors
✔ Bathroom doors
✔ Closet doors
✔ Older residential doors
2-3/4" Backset
Commonly used on:
✔ Front doors
✔ Side entry doors
✔ Garage entry doors
✔ Some newer construction doors
However, there are exceptions. Always measure your actual door before purchasing.

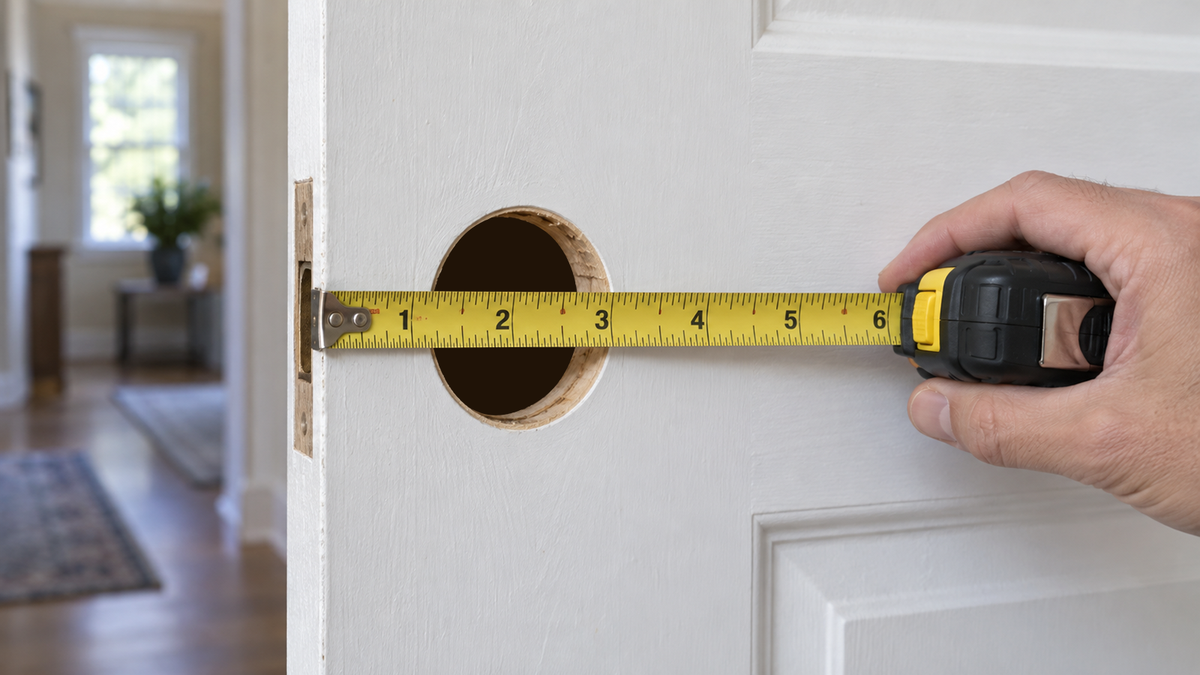

How to Measure Door Backset
Measuring backset only takes a few seconds.
Step 1: Open the Door
Open the door so you can clearly see the edge and the knob hole.
Step 2: Find the Center of the Bore Hole
Locate the center point of the large round hole where the knob or lock is installed.
Step 3: Measure From the Door Edge
Use a tape measure to measure from the edge of the door to the center of the bore hole.
Your measurement will usually be:
✔ 2-3/8" or ✔ 2-3/4"
What If My Door Backset Is Not Standard?
Some older doors may have non-standard measurements.
This is especially common in:
✔ Older homes
✔ Vintage doors
✔ Modified doors
✔ Mortise lock conversions
✔ Doors with previous hardware repairs
If your backset does not match modern standards, you may need special hardware or door preparation.
Adjustable Door Latches: The Easiest Solution
Many modern door knobs and locks include an adjustable latch.
An adjustable latch can usually fit both:
✔ 2-3/8" backset
✔ 2-3/4" backset
This makes installation easier and reduces the risk of ordering the wrong latch size.
For homeowners replacing old hardware, an adjustable door latch is often the safest choice.
Backset vs Door Thickness: Don't Confuse Them
Backset and door thickness are different measurements.
Backset
Measures:
Door edge → Center of bore hole
Door Thickness
Measures:
One face of the door → Opposite face of the door
Common door thicknesses include:
✔ 1-3/8"
✔ 1-3/4"
Both measurements matter when choosing hardware.
Frequently Asked Questions
What is the standard backset for a door knob?
Most residential door knobs use either a 2-3/8" or 2-3/4" backset.
How do I know if my backset is 2-3/8 or 2-3/4?
Measure from the edge of the door to the center of the bore hole.
Can I use a 2-3/8 latch on a 2-3/4 backset door?
No. The latch length must match the backset unless it is adjustable.
Are adjustable latches worth it?
Yes. Adjustable latches are helpful because they fit both common backset sizes and reduce compatibility mistakes.
Final Thoughts
Door backset is one of the most important measurements to check before buying new hardware.
Most residential doors use either 2-3/8" or 2-3/4" backset, and choosing the correct size ensures that your knob, lever, latch, or deadbolt installs properly.
If you're unsure which size you need, an adjustable door latch can provide a flexible solution for most standard residential doors.
