What Are the Parts of an Entry Door?
Your front door is more than just a panel that opens and closes.
An entry door system is made up of multiple components that work together to provide:
✔ Security
✔ Weather protection
✔ Energy efficiency
✔ Everyday convenience
Understanding the different parts of an entry door can help homeowners:
- Choose replacement hardware
- Troubleshoot door problems
- Upgrade security
- Select the right lockset
Whether you are replacing an old front door knob, installing a new deadbolt, or repairing an aging entry door, knowing these components makes the process much easier.

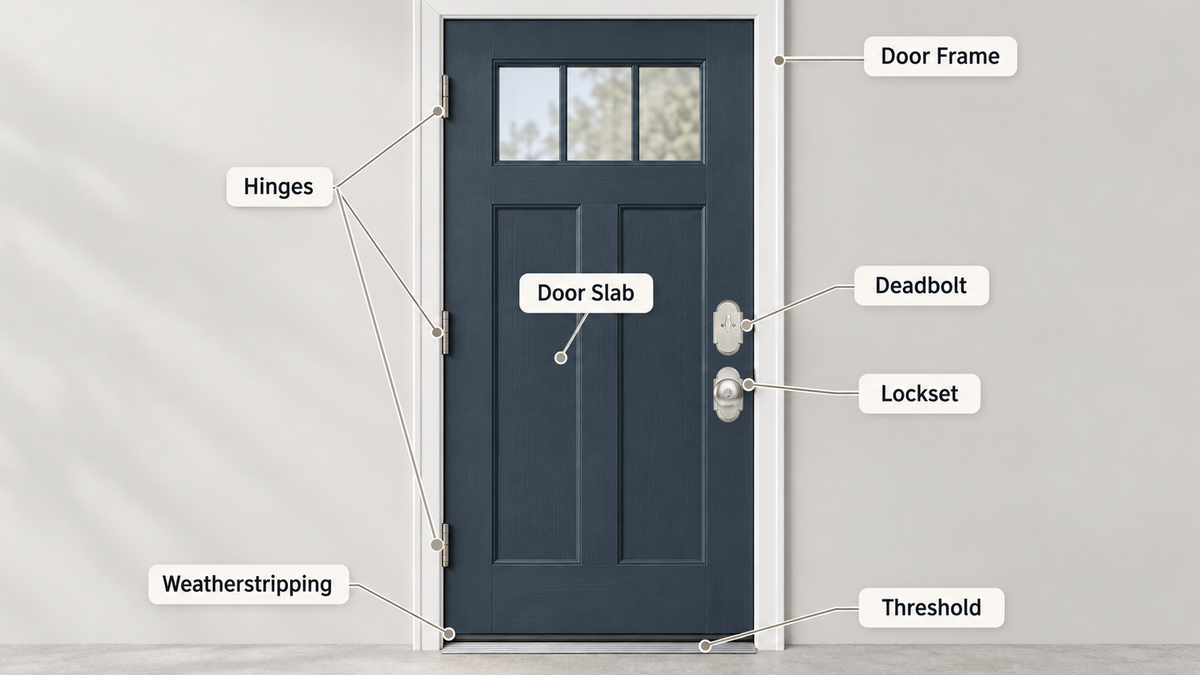

1. Door Slab (Door Panel)
The door slab is the main movable part of the entry door.
It is the large panel that opens and closes.
Common materials include:
- Wood
- Fiberglass
- Steel
The door slab typically contains openings prepared for:
✔ Door knob
✔ Deadbolt
✔ Hinges
✔ Glass inserts (optional)
The thickness of the door slab is important when choosing new hardware.
Most residential doors use:
- 1-3/8"
- 1-3/4"
Some specialty doors may be thicker.
2. Door Frame (Jamb)
The door frame surrounds the door slab and supports the entire door system.
Main frame components include:
Side Jambs
Vertical sections on each side.
Head Jamb
The horizontal top section.
Threshold
The bottom section that helps seal the doorway.
The frame must be properly aligned so the door closes smoothly.
3. Hinges
Hinges connect the door slab to the frame.
They allow the door to swing open and closed.
Most residential entry doors use:
- Three hinges
- Four hinges for heavier doors
Proper hinge alignment is important because a sagging door can affect:
- Lock alignment
- Deadbolt operation
- Door closing
4. Door Knob or Entry Lockset
The door knob or entry lockset is the hardware homeowners interact with every day.
Entry hardware typically includes:
- Exterior knob or handle
- Interior knob or thumb turn
- Lock cylinder
- Latch mechanism
Unlike interior passage knobs, entry hardware includes a locking function.
Common options include:
Keyed Entry Knob
Uses a key from the outside.
Entry Handleset
Includes a decorative exterior handle with separate deadbolt.
5. Deadbolt
A deadbolt is one of the most important security components on an entry door.
Unlike a spring latch, a deadbolt extends deeper into the door frame.
Common residential types:
Single Cylinder Deadbolt
Key outside, thumb turn inside.
Double Cylinder Deadbolt
Key required on both sides.
Most homes use single cylinder deadbolts for convenience and safety.
6. Strike Plate
The strike plate is installed on the door frame.
It receives:
- The latch
- The deadbolt
A properly aligned strike plate ensures smooth locking.
Common problems include:
- Door won't latch
- Deadbolt won't extend
- Loose frame area
7. Door Sweep and Weatherstripping
Entry doors also include components designed for weather protection.
Weatherstripping
Installed around the frame.
Helps reduce:
- Air leaks
- Drafts
- Moisture intrusion
Door Sweep
Installed at the bottom of the door.
Helps block:
- Dust
- Cold air
- Water
8. Glass Inserts and Decorative Elements
Many entry doors include decorative features such as:
- Glass panels
- Decorative trim
- Raised panels
- Molding
These elements influence the home's appearance and style.
Hardware should complement these design details.
How Entry Door Parts Work Together
A properly functioning entry door requires all components to work together.
For example:
The hinges keep the door aligned.
↓
The latch and deadbolt extend into the strike plate.
↓
The frame supports the locking system.
↓
The hardware provides access and security.
Problems with one component can affect the entire door system.
Common Entry Door Problems Related to Hardware
Door Won't Latch
Possible causes:
- Misaligned strike plate
- Loose hinges
- Door movement
Deadbolt Is Difficult to Turn
Possible causes:
- Poor alignment
- Worn hardware
- Frame movement
Door Knob Feels Loose
Possible causes:
- Loose mounting screws
- Aging hardware
- Door preparation issues
Frequently Asked Questions
What is the most important part of an entry door?
The door system works as a whole, but the lockset, deadbolt, frame, and strike plate are especially important for security.
What hardware is on a front door?
Most front doors include an entry lockset or handleset, deadbolt, hinges, and strike plate.
Can I replace only the hardware on my entry door?
Yes. Many homeowners replace knobs, handlesets, and deadbolts without replacing the entire door.
What is the difference between a door knob and an entry lockset?
A door knob can refer to many interior functions, while an entry lockset specifically provides exterior locking functionality.
Final Thoughts
Understanding the parts of an entry door makes it easier to maintain, repair, and upgrade your home.
From the door slab and frame to the lockset, deadbolt, and strike plate, every component plays an important role.
When upgrading your front entrance, choosing compatible and well-designed hardware can improve both the security and appearance of your home.
